Sockets Compatible with the Plug Locking Cover

The Plug Locking Cover is designed to be compatible with the majority of Single-Gang, Unswitched socket.

Switched sockets normally have the socket on the front be offset to allow for the switch to be added, and so this can cause the Plug Locking Cover to be 'pushed' off to one-side.

Below is a table which shows the compatibility of some of the most common sockets. The following variables have been examined:

  • Corner: How closely the socket matches the corner of the Plug Locking Cover

  • Edge: How closely the straight edges of the socket matches the edge of the Plug Locking Cover

  • Alignment: How well the screwholes match with the Plug Locking Cover , and so if there is a gap between the Smart Plug and Plug Locking Cover when installed using the pattress screws.


Manufacturer

Model

Corner

Edge

Alignment

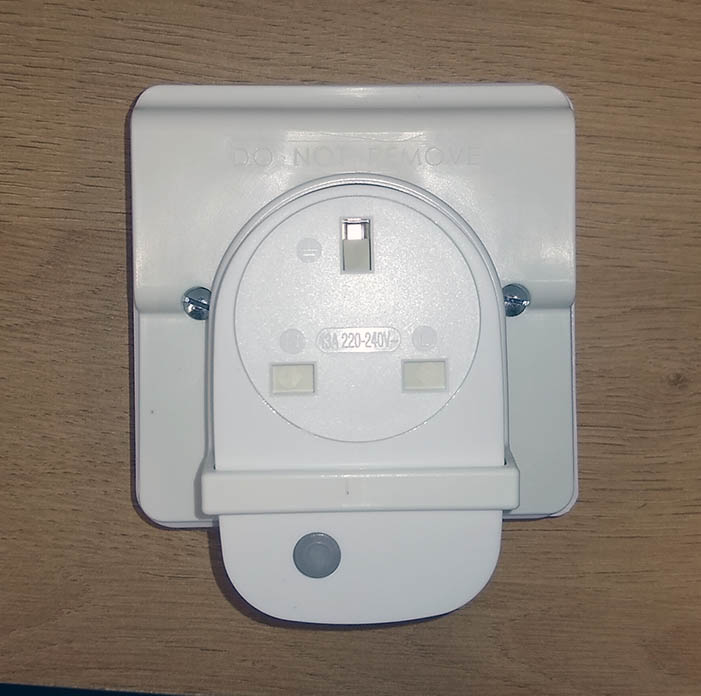

Schneider

3050

Round

Sharp

Near Perfect

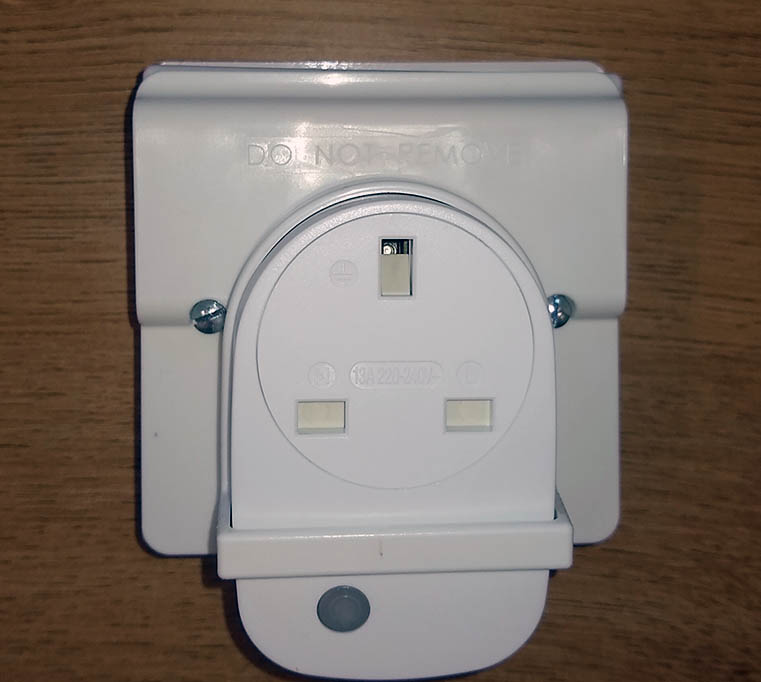

Pro-Elec

PELB1851

Square

Sharp

Near Perfect

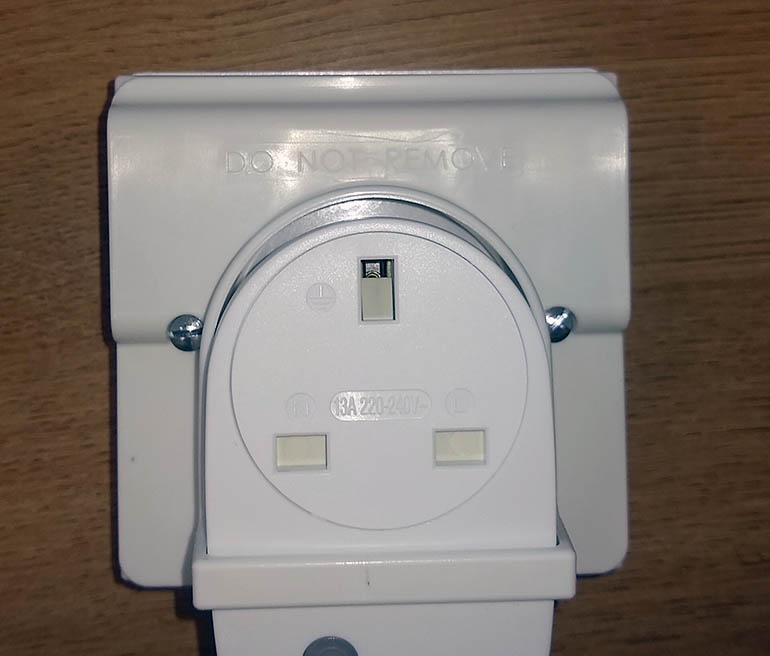

BG

923

Square

Sharp

Small Gap

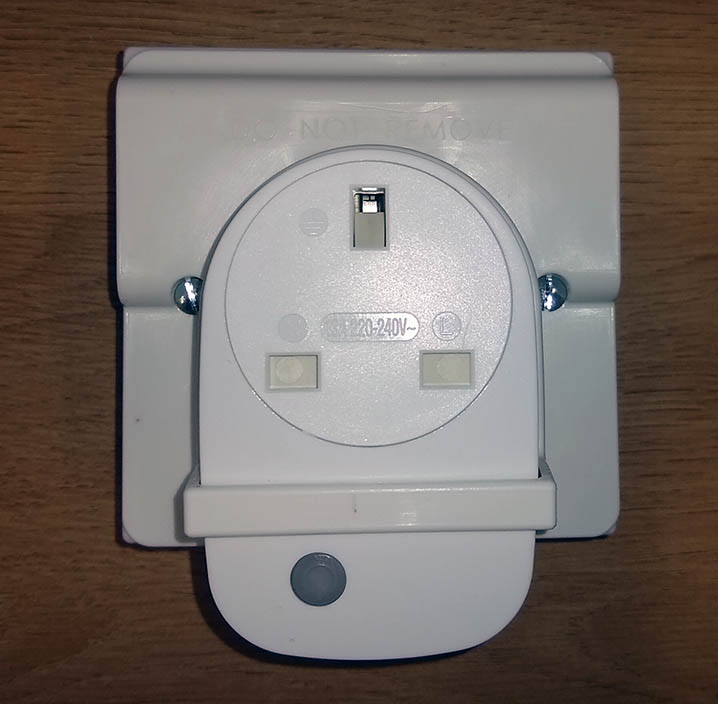

Knightsbridge

SN7000U

Square

Sharp

Small Gap

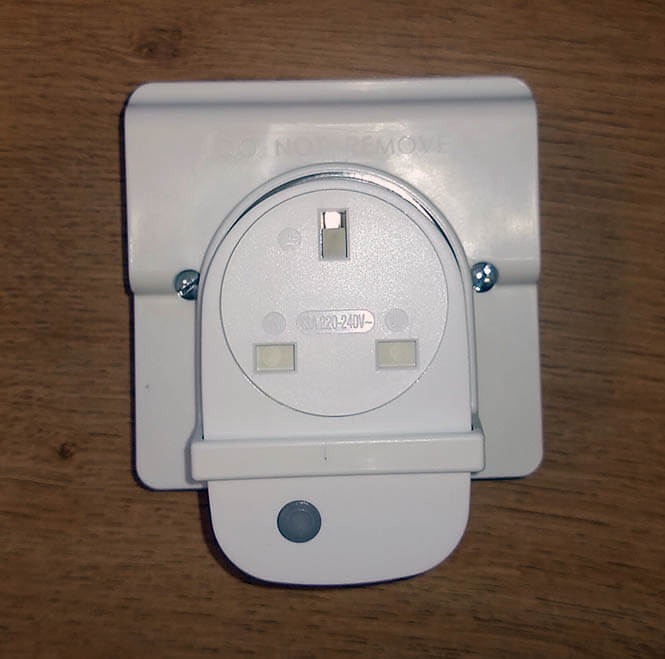

Volex

VX9100

Square

Sharp

Small Gap

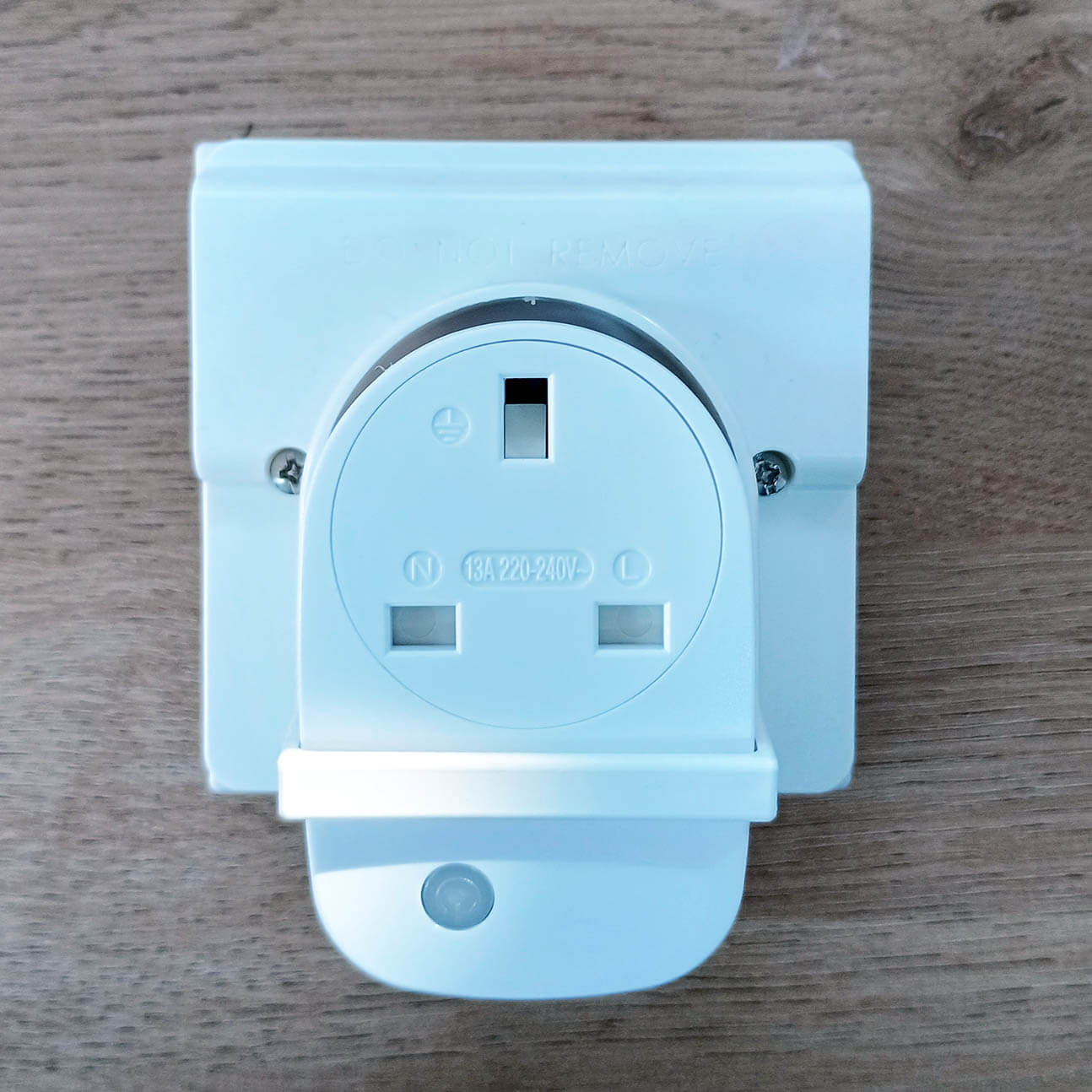

M2

Square

Square

Sharp

Small Gap

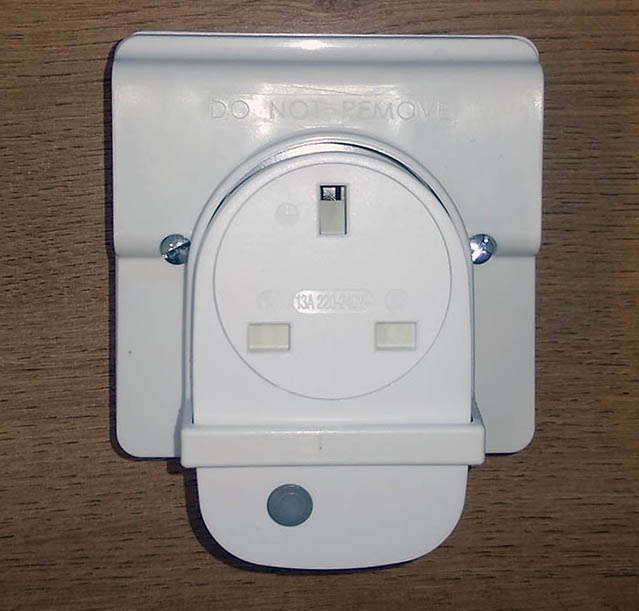

Click Mode

SW4131311.E

Round

Angled

Small Gap
